Kit B Optimus/Primus etc 1 Pint for 00, 210 etc


Product Information

A comprehensive kit for the classic 1 pint / .6L stoves No:00, No:210 etc & many of the variants from other makers.  Made from superior materials.

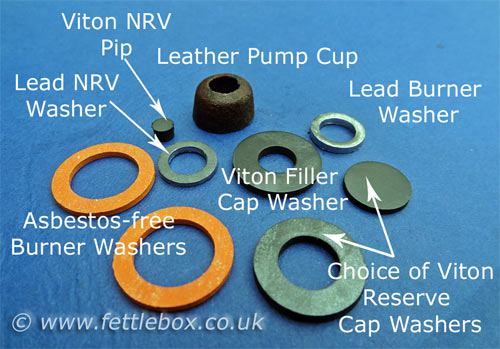

Kit contains:

  • Premium leather pump washer - od14mm
  • VITON filler cap washer od18/id8mm
  • Asbestos-free Burner Washer x 2 od19/id13mm (colour may vary)
  • VITON non-return valve (NRV) 4.5mm pip
  • Lead external NRV washer - od12/id7.5mm (hdpe also available - select via drop-down box above)
  • Lead tank/burner washer - od12/id8mm
  • VITON reserve cap for tank or pump mounted caps - Ø13mm
  • VITON reserve Cap for chain mounted caps od18/id10mm
  • Brass NRV pip holder for NRV's that had moulded pip mounted direct on spring ( select option via drop down box above)




This comprehensive kit will cover several variations - stoves with the tank or pump mounted reserve cap & the ones with the reserve cap retained by a chain.  If your stove uses the tank mounted cap the other reserve cap washer can also be used in the Svea 123/123R & similar. There are two Asbestos-free burner washers so you can fit one either side of the spirit-cup if you wish or keep one as a spare.  Some burners have a seal-free male, tapered, threaded mount that screws into the tank.  Other have a female boss - the kit includes the lead washer for the sealing surface inside the boss.


We sell kits for most popular types of classic camp stoves.  If you don't see the kit you need let us know - we may be able to make it.  If you need some parts from one kit & some from another we can also mix & match contents.




Product Code: KITB - A-B1
